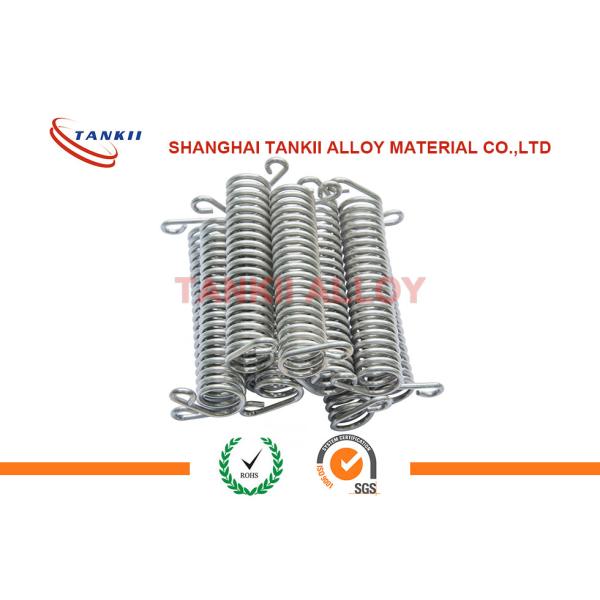

Cold Rolled Furnace Heating Element Bright Ni80 Nickel Chromium Alloy

Name: Cold Rolled Furnace Heating Element Bright Ni80 Nickel Chromium Alloy
Brand: Tankii
Price: 1.5 USD

China Cold Rolled Furnace Heating Element Bright Ni80 Nickel Chromium Alloy wholesale

Brand Name : Tankii

Model Number : Ni80Cr20

Certification : ISO RoHS AISI ASTM GB

Place of Origin : China

MOQ : 20Kg

Price : USD 1.5/pieces

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200Tons/Month

Delivery Time : 5-10 working days

Packaging Details : carton

Surface : Bright or Oxidated

Craft : Cold Rolled

Characteristics : High Resistivity, Good Oxidation Resistance

The Highest Use Temperature : 1200c

Resisivity : 1.09

Density : 8.4

Sample : Free

Shape : Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil

Type : Ni80cr20,Ni80,Alloy a,Resistohm 80,Cronix 80

Trade term : FOB, EXW, CIF

Contact Now

Ni80 Nickel Alloy for High Temperature Resistance Material Auto Parts Resistor Spring

Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.

Mechanical Properties of Nichrome 80 Flat Heating Rod

Max Continuous Service Temperature:	1200ºC
Resisivity 20ºC:	1.09 ohm mm2/m
Density:	8.4 g/cm3
Thermal Conductivity:	60.3 KJ/m·h·ºC
Coefficient of Thermal Expansion:	18 α×10-6/ºC
Melting Point:	1400ºC
Elongation:	Min 20%
Micrographic Structure:	Austenite
Magnetic Property:	nonmagnetic

Temperature Factors Of Electrical Resistivity

20ºC	100ºC	200ºC	300ºC	400ºC	500ºC	600ºC
1	1.006	1.012	1.018	1.025	1.026	1.018
700ºC	800ºC	900ºC	1000ºC	1100ºC	1200ºC	1300ºC
1.01	1.008	1.01	1.014	1.021	1.025	-

Style of supply

Alloys Name	Type	Dimension
Ni80Cr20W	Wire	D=0.03mm~8mm
Ni80Cr20R	Ribbon	W=0.4~40	T=0.03~2.9mm
Ni80Cr20S	Strip	W=8~250mm	T=0.1~3.0
Ni80Cr20F	Foil	W=6~120mm	T=0.003~0.1
Ni80Cr20B	Bar	Dia=8~100mm	L=50~1000

Product Description
1. ODM&OEM service are all welcomed
2. Practicable Software: Solidworks,Pro/Engineer,Auto CAD,PDF,JPG
3. Small orders accept
4. Reasonable and competitive price according to your drawings

Packing & Delivery
Packing Details : Inner plastic bag,outside carton box,last is the pallet,all are based on the customers' requirments
Delivery Details : 10-30 days after you confirm the samples
Payment terms: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.If you have another question, pls feel free to contact us.

Applications & Products Show

Cold Rolled Furnace Heating Element Bright Ni80 Nickel Chromium Alloy
